Deploying Scality RING in the aaS environment¶
Pre-requisites¶
If necessary, install VMware-ovftool-4.4.3 on your Windows jumpbox (reboot required)
The Scality OVA template is located on the shared lab drive (from VM jumpbox):
X:\Scality\OVA
Overview¶
The steps below will deploy a virtualized Scality RING with:
- 6 nodes
- Scality endpoint
- Scality supervisor
Deployment¶
Launch a Powershell terminal (as Administrator) and use ovftool.exe to deploy the OVA.
Below is example output producing a Scality RING and took ~1 hour to complete.
Customize Scality RING deployment with ovftool arguments
| Argument | Description | Example |
|---|---|---|
--name |
Name of vApp | virt-scality |
--net:"OVA Internal Network 1" |
Internal Network | pg-vm-network |
--net:"OVA Private Network 1" |
Private Network | pg-scality-network |
-dm |
Provisioning type | thin |
-ds |
Datastore location | virt-primera-a630-vol1 |
shell fct_label="Scality RING OVA Deployment"
PS C:\Program Files\VMware\VMware OVF Tool> .\ovftool.exe --noSSLVerify --acceptAllEulas --name=virt-scality --net:"OVA Internal Network 1"=pg-vm-network --net:"OVA Private Network 1"=pg-vm-network -dm=thin -ds=virt-primera-a630-vol1 "x:\Scality\OVA\Scality_OVA_8.5.0.0.ova" 'vi://ftc-tmaas-vc.hpelab.local/FTC-aas/host/tmaas-cluster1'
Opening OVA source: x:\Scality\OVA\Scality_OVA_8.5.0.0.ova
The manifest validates
Enter login information for target vi://ftc-tmaas-vc.hpelab.local/
Username: ebrown@hpelab.local
Password: *************
Opening VI target: vi://ebrown%40hpelab.local@ftc-tmaas-vc.hpelab.local:443/FTC-aas/host/tmaas-cluster1
Deploying to VI: vi://ebrown%40hpelab.local@ftc-tmaas-vc.hpelab.local:443/FTC-aas/host/tmaas-cluster1
Transfer Completed
Completed successfully
PS C:\Program Files\VMware\VMware OVF Tool>

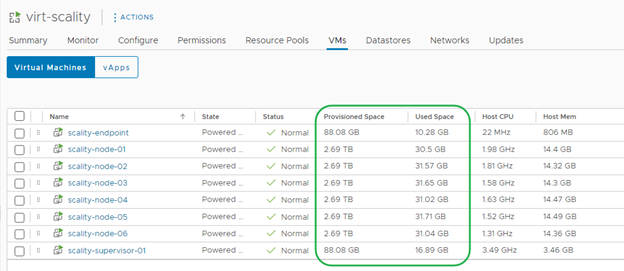

Thin provision VM disks
Verify all disks are provisioned 'thin' when deployed to shared datastores:
Verification¶

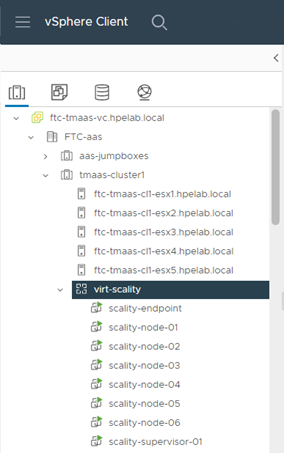

With the OVA deployment complete, a vApp named virt-scality will be deployed. All VMs will be show powered off.
To power on the virtual Scality RING, right click on the vApp and select Power > Power On. Each VM will be automatically powered on.

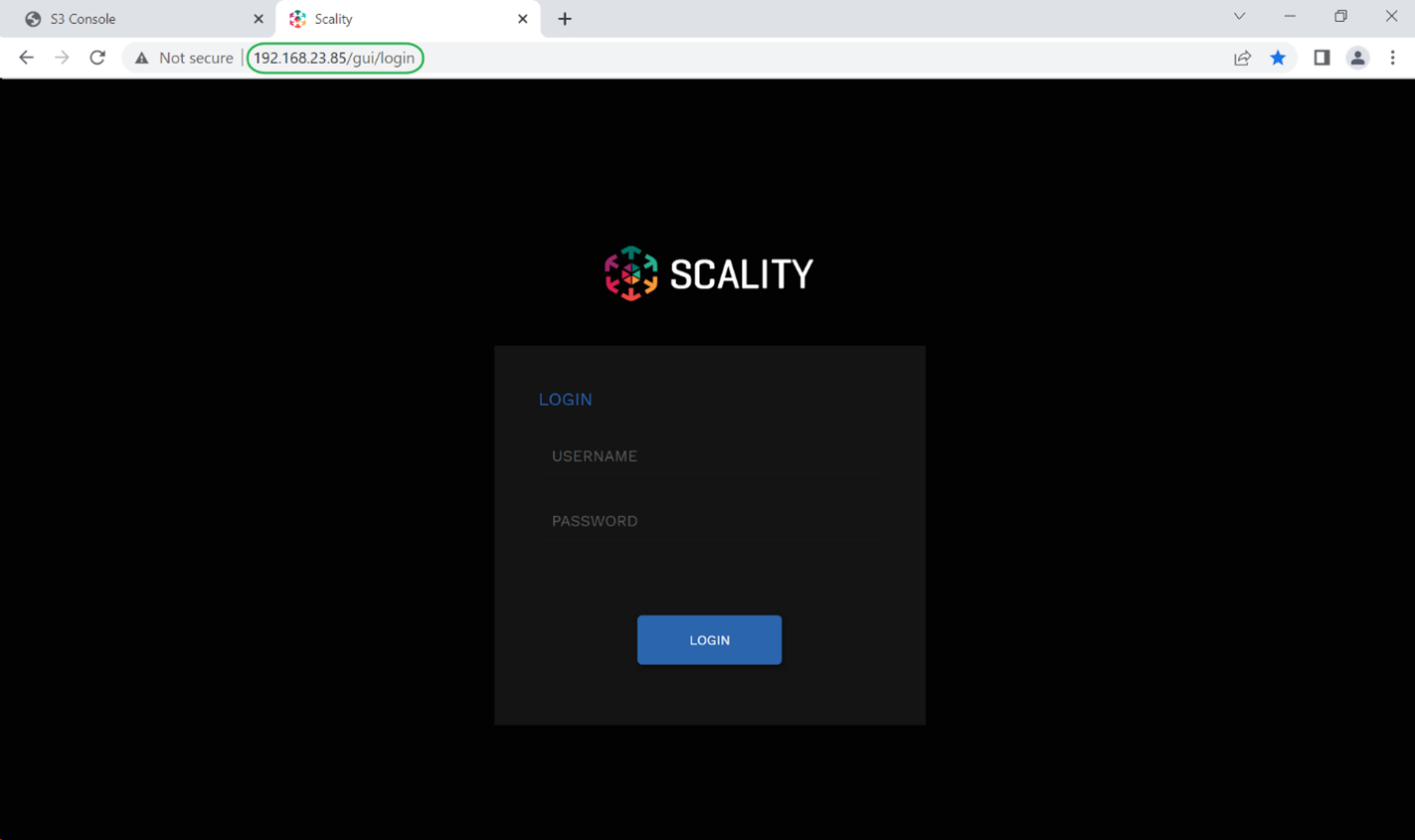

Scality UI is accessed using the "scality-supervisor-01" IP address.
Default Scality credentials: admin/scality

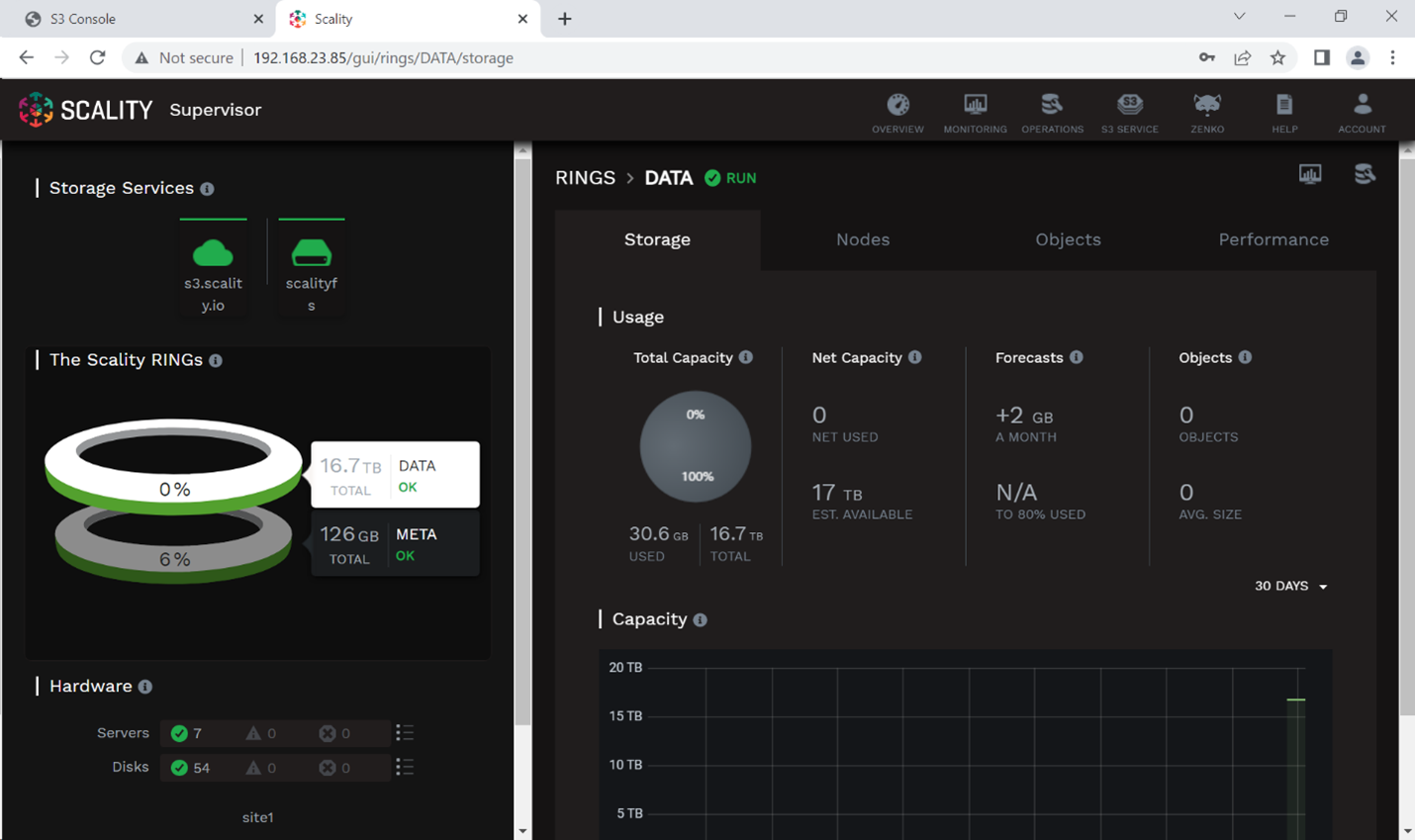

Scality Supervisor : Storage view
